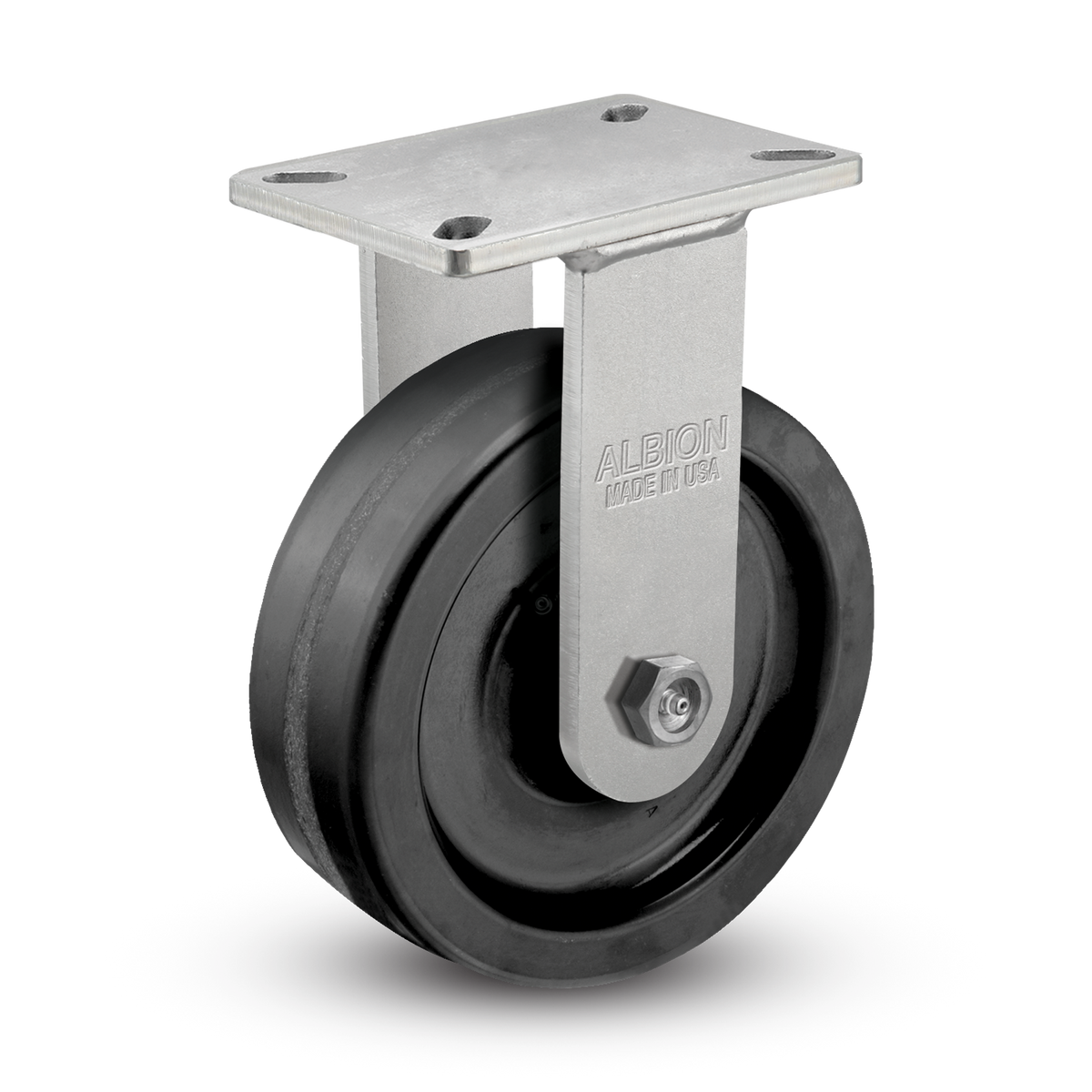

410TM08501R - 8" x 3" Phenolic Kingpinless Rigid Caster

Albion 410 Series Kingpinless Casters (Heavy-Duty, Up to 5,400 lb. Capacity)

Built for the toughest industrial environments, the Albion 410 Series caster line sets the standard for strength, durability, and long-term performance. Proudly manufactured in Michigan, these premium casters are engineered from high-quality, heat-treated AISI 1045 laser-cut steel to deliver unmatched reliability in high-impact, high-load applications.

At the core of the 410 Series is a kingpinless design—eliminating the most common point of caster failure found in traditional assemblies. Combined with a precision-machined raceway and fully welded construction (inside and out), this design ensures maximum structural integrity and extended service life, even under constant heavy use.

With larger top plates and higher load capacities than lighter-duty alternatives, the 410 Series is purpose-built for demanding operations where performance and safety cannot be compromised.

Key Features & Benefits

Kingpinless Design – Eliminates kingpin failure, reducing downtime and maintenance costs
Extreme Load Capacity – Supports up to 5,400 lbs per caster for heavy industrial applications
Laser-Cut Steel Construction – Heat-treated AISI 1045 steel for superior strength and durability
Fully Welded Frame – Legs welded inside and out for maximum structural integrity
Precision Swivel Raceway – Machined and heat-treated raceway with 1/2" ball bearings for smooth rotation
Integrated Lubrication – Zerk fitting in swivel section for easy maintenance and extended lifespan
Corrosion-Resistant Finish – პრემียម RoHS-compliant zinc plating outperforms traditional painted finishes
Heavy-Duty Axle – 3/4" diameter axle provides added strength under load
Made in the USA – Manufactured in Michigan with strict quality standards
Custom Configurations Available – Adaptable to specialized equipment and applications

Specifications

• Construction Material: Heat-treated AISI 1045 steel
• Top Plate Thickness: 3/8"
• Leg Thickness: 3/8", welded inside and out
• Swivel Design: Kingpinless with precision machined raceway
• Bearing Type: 1/2" diameter ball bearings
• Axle Diameter: 3/4"
• Finish: RoHS-compliant zinc plating
• Maximum Load Capacity: Up to 5,400 lbs per caster
• Warranty: 3-Year Limited Warranty

Ideal Applications

The Albion 410 Series is engineered for high-demand industries and heavy-duty material handling environments, including:

• Aerospace manufacturing and ground support equipment
• Automotive production and assembly lines
• Marine and shipyard operations
• Warehousing and distribution centers
• Conveyor-drawn tow trucks and tow lines
• Heavy-duty bakery racks and dough troughs
• Production dollies and industrial carts

Why Choose Albion 410 Series Casters?

When your operation depends on reliability under extreme conditions, the Albion 410 Series delivers. Its kingpinless construction, reinforced steel design, and precision-engineered swivel system provide superior performance compared to conventional casters. The result: longer service life, reduced maintenance, and dependable mobility for your heaviest loads.

If you need a caster solution that can withstand punishing environments without compromising efficiency or safety, the Albion 410 Series is built to handle the job.
