Specify casters for uneven floors from the floor defect up, not from the load down. The load math still matters, but on broken concrete the defect decides diameter, tread, and rig before capacity ever enters the conversation.
Survey the Floor Before You Spec Casters for Uneven Floors
Walk the actual route first and record four things.
- Obstacle height. How far the wheel has to climb at the worst point.
- Gap width. How wide the opening is that the wheel has to bridge.
- Surface texture. Smooth, broom finish, spalled, or loose with debris.
- Route frequency. How many times per shift the equipment crosses the worst spot.

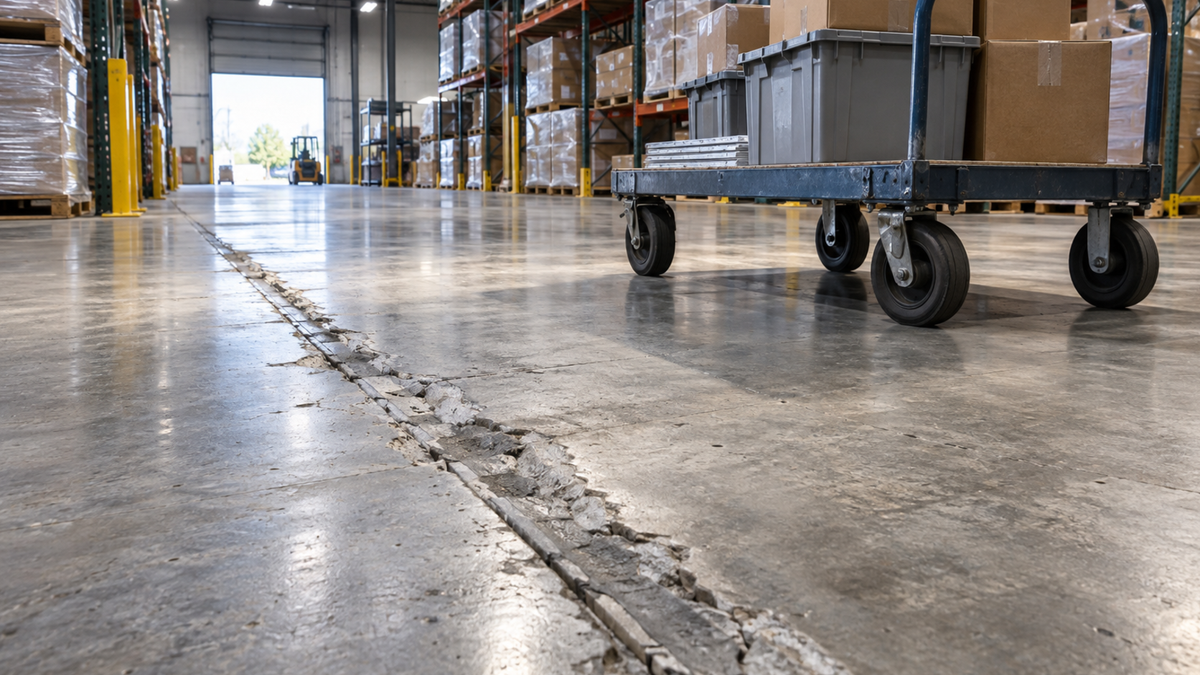

Those four numbers cover the floor defects that actually show up on a plant floor: expansion joints, spalled or pitted concrete, patched sections, trench drain covers, thresholds, dock plates, and asphalt-to-concrete transitions at the door.
One relationship drives everything downstream. The wheel has to be large enough relative to the obstacle to climb it rather than stop against it, and wide enough that it does not drop into the gap. Get that wrong and no other spec on the sheet saves the application.
Frequency changes the answer more than people expect. A dock plate crossed once a shift is a different specification than a trench drain crossed forty times a shift.
Wheel Diameter Is the First Lever on Rough Floors
When you spec casters for uneven floors, start with diameter, because it does the most work for the least money.
A larger diameter wheel meets an obstacle at a shallower angle, so it rolls over the edge instead of stopping against it. The same geometry bridges a gap that a smaller wheel drops into, which is what turns an expansion joint into a jolt rather than a stall.
Larger diameter also lowers rolling resistance across textured and broken surfaces. That shows up as less push effort per trip, which matters on any route your team runs all shift.
The costs are real and worth stating plainly. Larger diameter raises overall height, which raises deck height. It widens the swivel envelope, which changes clearance around frame members. And it can change whether the equipment still fits through a door, under a conveyor, or into a rack bay.
Resolve the tradeoff on the datasheet. Verify the overall height and swivel radius fields on the product listing before committing to a larger wheel, and confirm the mounting surface can carry the taller rig.
Exact diameter comes from measuring the obstacle on your actual route. It does not come from a rule of thumb.
Not sure how big is big enough for your floor? Request a quote and walk a specialist through the route.
Tread Material and Hardness for Cracked, Pitted, and Patched Concrete
Hardness is a tradeoff with no free side. Harder treads roll more easily and transmit every impact into the load. Softer treads absorb shock and push harder, and they wear faster doing it.
When choosing casters for uneven floors, the materials sort out like this against damaged concrete.
- Polyurethane. Durable and floor-friendly, the default for most damaged-floor work.
- Rubber. Quieter and more forgiving over impacts, but less durable.
- Steel and cast iron. Built for extreme loads, punishing on broken concrete and on the operator.
- Nylon. Lightweight and moisture resistant, a fit for damp and washdown areas.
Debris changes the calculus. Grit, weld spatter, and metal chips embed into soft treads and turn the wheel into an abrasive that grinds the floor it was supposed to protect. That is the most common reason a soft tread underperforms on a broken floor.
Outdoor and yard transitions add temperature swing and standing moisture to the decision, which shortens the material shortlist again. If a Grey non-marking tread is on the table for floor protection, confirm it also suits the debris and temperature on that route.
Caster Shock Absorption and the Load Margin Rough Floors Demand
Shock-absorbing and spring-loaded rigs let the wheel travel vertically over a defect, so the impact goes into the spring instead of into the rig, the load, and the operator.
They earn their cost in four situations: fragile or instrument-carrying loads, tow lines, high-frequency routes over the same defect, and any application where impacts repeat rather than happen occasionally.
There is a capacity nuance buyers have to respect. A shock-absorbing rig has a working load range rather than a single rated number. Run one well under that range or above it and the mechanism stops doing its job, so confirm the load range on the product listing.
Margin matters more here than anywhere else, because a rough floor is a shock-loading environment by definition. A 20 percent margin over calculated per-caster load is the minimum for most applications, and shock loading warrants 40 to 50 percent.
Apply the three-caster rule on top of that. On a four-caster cart, divide total weight by three rather than four. The Institute of Caster and Wheel Manufacturers recommends that calculation precisely because floors are not flat and one caster can momentarily carry nothing.
When Shock Absorption Is Not the Answer
Three cases call for something else.
A single occasional threshold is usually a diameter problem, not a suspension problem. Precision positioning and stable work-surface height conflict with a rig that compresses under load. And equipment already overloading standard rigs needs capacity first and suspension second.
Swivel Behavior, Rig Strength, and Locking on Bad Floors
An uneven floor loads the swivel raceway laterally every time a wheel drops or climbs. Rig construction and raceway quality matter more here than they ever do on smooth concrete.
Configuration is the next call. All-swivel gives maximum maneuverability and wanders across a broken surface. Two rigid and two swivel tracks straighter and takes defects more predictably.
Brakes behave differently on damaged floors too. A wheel brake on a surface that is not flat still lets the equipment rock, so total-lock or floor-lock hardware is worth evaluating anywhere parked stability matters.
Where the floor is producing grit and debris, sealed or shielded bearings are the right default rather than an upgrade.
Frequently Asked Questions
Q: What size caster wheel do I need for uneven floors?
A: Large enough to climb the worst obstacle on the route at a shallow angle and wide enough not to drop into the widest gap. Measure the obstacle height and gap width on the actual route, then check the resulting overall height and swivel radius on the listing.
Q: Are pneumatic casters good for rough or damaged floors?
A: They cushion impacts well and are common on outdoor and yard transitions. The tradeoff is added maintenance, since air pressure has to be checked and the tire can be punctured. For indoor plant floors, diameter and tread compound usually solve the problem with less upkeep.
Q: Do I need shock-absorbing casters or just bigger wheels?
A: It depends on frequency. An occasional threshold is usually a diameter problem. Repeated impacts, towed equipment, or fragile loads are where a shock-absorbing rig earns its cost, and that rig has a working load range you need to confirm.
Q: What is the best wheel material for cracked concrete?
A: Polyurethane is the usual default because it balances durability with floor protection. Rubber is more forgiving over impacts but wears faster. Debris on the route matters, since grit embeds in softer treads and turns the wheel abrasive.
Q: How much extra load capacity should I add for an uneven floor?
A: Treat it as a shock-loading environment. A 20 percent margin over calculated per-caster load is the minimum, and 40 to 50 percent is appropriate where impacts are repeated or loads are dropped. Divide by three rather than four on a four-caster cart.
Spec Casters for Uneven Floors With a Specialist
Casters for uneven floors come together when the floor survey, the load math, and the route description arrive at the same time, not when a catalog gets filtered on diameter alone. Casters are all we do, and we have been doing it since 1866. Request a quote with your obstacle measurements and load figures.
