The Cart Was Rated for the Load and a Caster Still Failed
Getting caster load distribution right takes one calculation, and it is not total weight divided by the number of casters. That single shortcut is behind most of the failures on equipment whose total rating looked perfectly adequate on paper.
The failure signature is easy to recognize. One wheel is flat spotted or the tread has taken a set, or one swivel has gone stiff and gritty, while the other three casters on the same cart still look nearly new. Nothing about that pattern says the total capacity was too low. It says the load never actually split four ways.
What follows is a repeatable method for caster load distribution: a worst case total, a distribution divisor, a margin, and a check against the real dynamic rating on the product page.
Why Four Casters Rarely Share the Load Four Ways

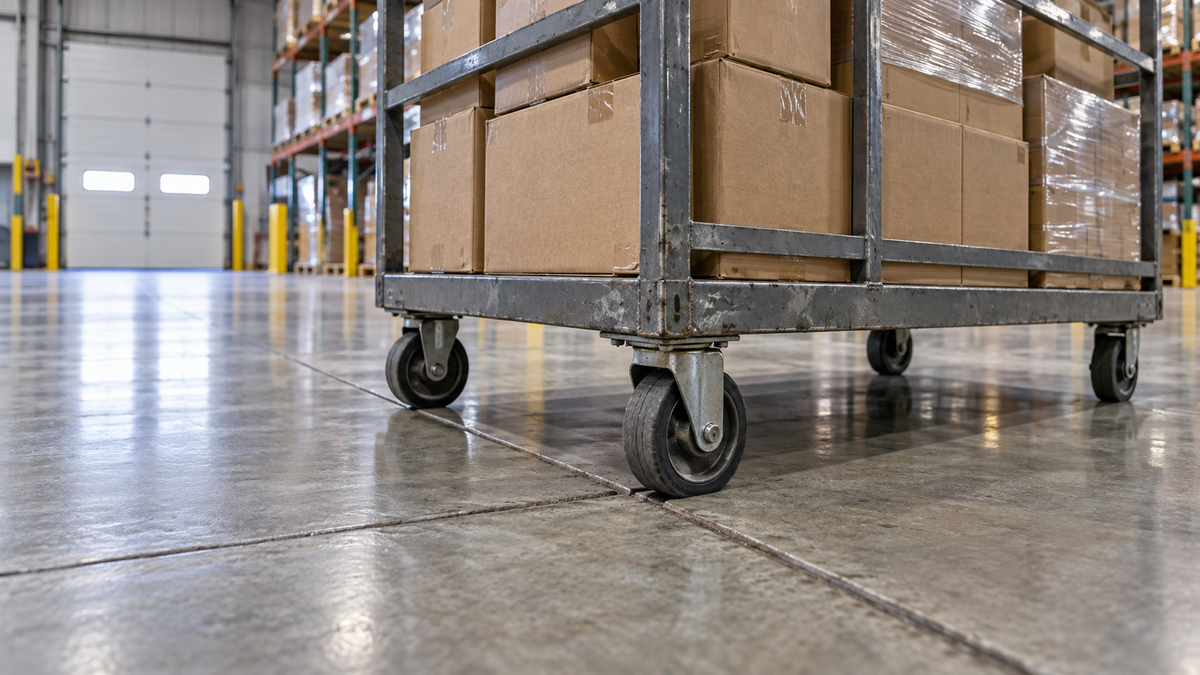

Floors are not flat, frames flex, and loads almost never sit dead center. At any given moment on a real plant floor, one caster can be carrying far more than its even share while another carries almost nothing. Cross an expansion joint or a drain grate and the distribution shifts again.
Turning makes it worse. As equipment traverses and pivots, one corner can momentarily lift close to zero load, which pushes everything it was carrying onto the remaining three. That is the whole basis for the three caster rule we already publish, which follows ICWM practice: on a four caster unit, divide by three rather than by four.
This is the question buyers usually frame as 3 vs 4 caster load, and the answer is that three is the number to design around even though four are installed. Dynamic effects push it further. Starts, stops, and shock loading all raise the momentary load well above the static number, which is why heavy duty casters get specified against the worst instant rather than the average one.
What You Need Before You Run the Numbers
- Empty weight of the equipment
- Maximum weight it will ever carry
- Number and arrangement of casters
- How the load sits, centered or off center
- Floor condition, joints, and thresholds
- Whether loads are placed gently or dropped
How to Calculate Caster Load Distribution
- Total the worst realistic case. Add the empty weight of the equipment to the maximum load it will ever carry, not the load it usually carries. The caster has to survive the heaviest shift of the year, not the typical Tuesday. If the cart occasionally gets loaded past its nominal capacity because that is what the floor actually does, use that number and be honest about it.
- Divide by three on a four caster unit, not by four. This is the distribution correction, and it comes from our published three caster rule and the ICWM basis behind it. The same principle scales: on six and eight caster configurations, assume fewer casters are carrying than are installed rather than dividing evenly across the full set. Our existing load rating guide walks the per caster arithmetic in more detail.
- Apply the caster safety factor on top of the per caster number. Not to the total, to the per caster result from step two. A 20 percent margin is the published minimum for most applications. Where loads are dropped rather than placed, shock loading warrants 40 to 50 percent. Frequent starts, stops, and hard direction changes warrant more margin as well, because each one is a momentary spike.
- Check the off center case. If the load habitually sits toward one end, over a drawer bank, or against a rail, the worst loaded caster carries more than the even calculation predicts. Do not average that away. Work out which corner takes the weight and raise the requirement for that position, then specify the whole set to the highest number rather than mixing capacities across the unit.
- Compare against the dynamic rating, not the static one. Take the final per caster number to the product page and read the dynamic capacity, then confirm the wheel material and diameter suit the floor the equipment actually runs on. This article does not publish capacity figures for a reason. Read the rating on the specific caster you are considering, because it varies by series, wheel, and rig.
Have the totals but not the confidence? Request a quote and we will review the numbers with you.
When to Stop Calculating and Call the Caster Experts
The arithmetic stops being enough in a handful of predictable cases. Towed trains, where side loading and tracking forces are doing something the static math never modeled. Powered equipment. Seismic or shock loading environments. Three caster and five caster layouts, where the distribution assumption changes entirely. And any frame that flexes noticeably under load, because a flexing frame redistributes weight continuously.
Trust the caster experts with the specification review rather than guessing at the divisor. Have four things ready: the totals from step one, the caster count and arrangement, the floor surface, and the duty cycle. Send the numbers to sales@castercentral.com. Request a quote. More than 2,500 caster options in the catalog and nationwide shipping across the USA means the right replacement caster wheels are almost always in stock once the math is settled.
FAQs About Calculating Caster Capacity
Q: Should I divide by three or by four on a four caster cart?
A: Divide by three. That follows ICWM practice and accounts for uneven floors, frame flex, and off center loads, all of which mean the fourth caster cannot be relied on to carry its share at any given moment. Dividing by four is the most common mistake in calculating caster capacity.
Q: Does the safety factor go on before or after the distribution divisor?
A: After. Total the weight, divide by three to get the per caster requirement, then add the margin on top of that per caster number. Applying the margin to the gross total first understates what each individual caster has to survive.
Q: Do rigid and swivel casters carry the same share of the load?
A: Not reliably. Rigid casters tend to carry more during straight line travel and swivels take more during turns, and the split shifts constantly. Assume uneven sharing and specify every position to the worst case.
Run the Distribution Math Before You Buy
Caster load distribution is the step most buyers skip, and it is the one that decides whether a set of casters lasts years or gets replaced next quarter.
Send the numbers to the team or browse the catalog and match them against a real dynamic rating. Request a quote and we will keep you rolling forward.
