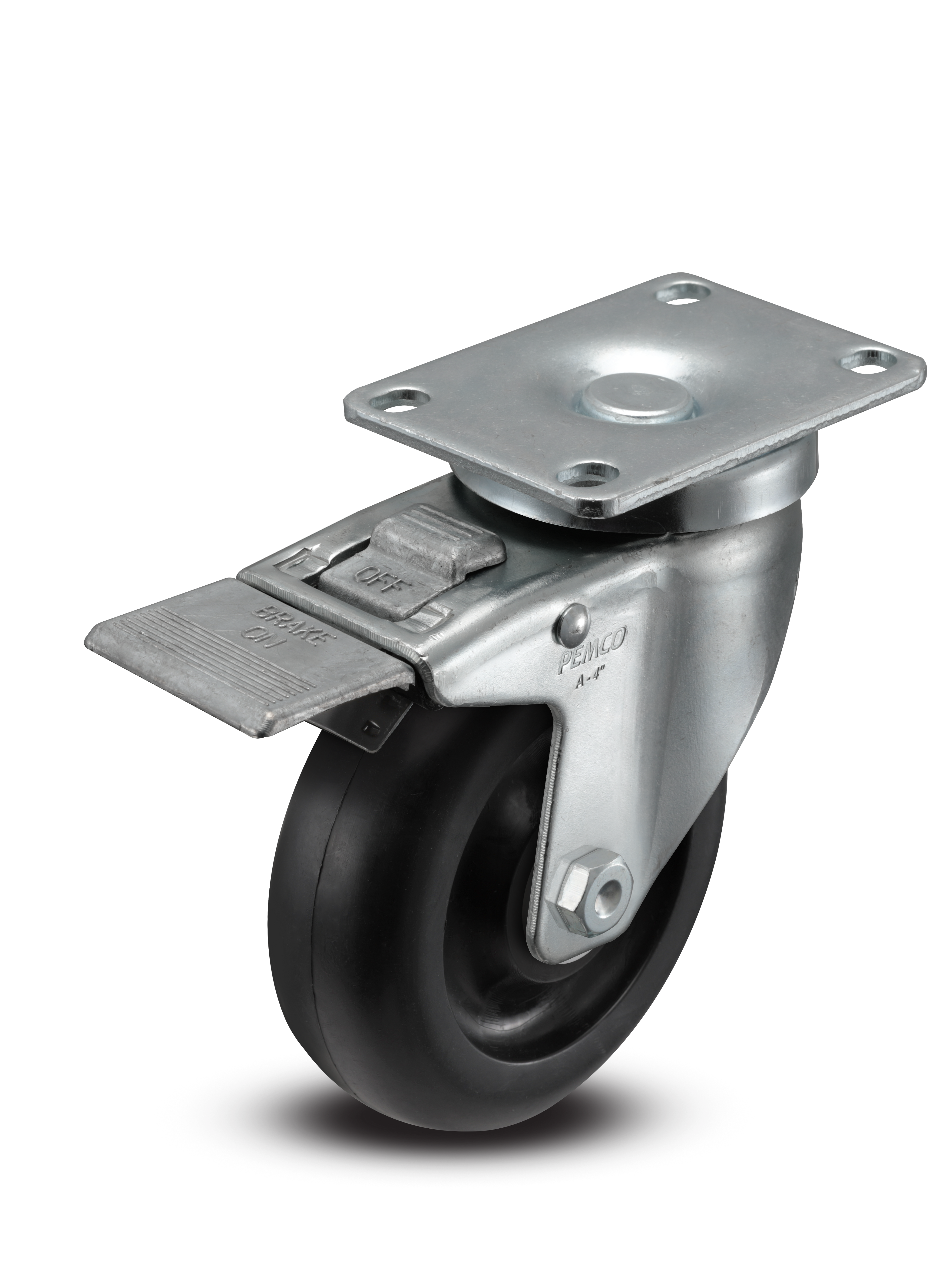

A-line 4" x 1.25" Polyolefin (POD) Wheel Caster With Swivel Top Plate and Total Lock Brake - Part# AS40P1PODTL
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/4" |
| Fastening Type | Top Plate |
| Fastening Size | 2-5/8" x 3-3/4" |
| Bolt Hole Spacing | 1-3/4" x 2-3/4" |
| Swivel Radius | 4.4375 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Delrin |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
| Brake Type | Total Lock Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Pemco A-Line 1 1/4 Inch Wide Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - AS40P1PODTL
Specify this 4-inch A-line swivel for a flat-framed cart where the parked load cannot be allowed to roll or pivot.
It bolts down through a 2-5/8 by 3-3/4 inch top plate, and the total lock pins the wheel and the swivel head together in one pedal action so a loaded cart can neither creep nor swing once set, which a wheel-only side brake cannot guarantee. The wheel is a hard polyolefin on a polypropylene core that resists moisture from -45 to 180°F, and the Delrin plain bearing runs maintenance-free. It is the economical total-lock top-plate corner of the A-line.
Ideal applications
- Flat-framed corners that must lock against roll and pivot
- Top-plate decks parked on a grade where a swivel would swing
- Economical total-lock corners on hard polyolefin wheels
If the swivel can stay free while the wheel is stopped, the side-brake AS40P1PODSB costs less.
Pairs with: plain top-plate A-line swivels on the rolling corners, these total-lock units opposite.
Wrong fit? Need a non-marking wheel or a stem mount? See the grey TPU top-plate total-lock AS40P1TPUTL and the threaded total-lock AS40T2PODTL.
Also in this family: the hollow-kingpin total-lock AS40H1PODTL, or the full Pemco collection.
