MFG PART: AR40P1POD

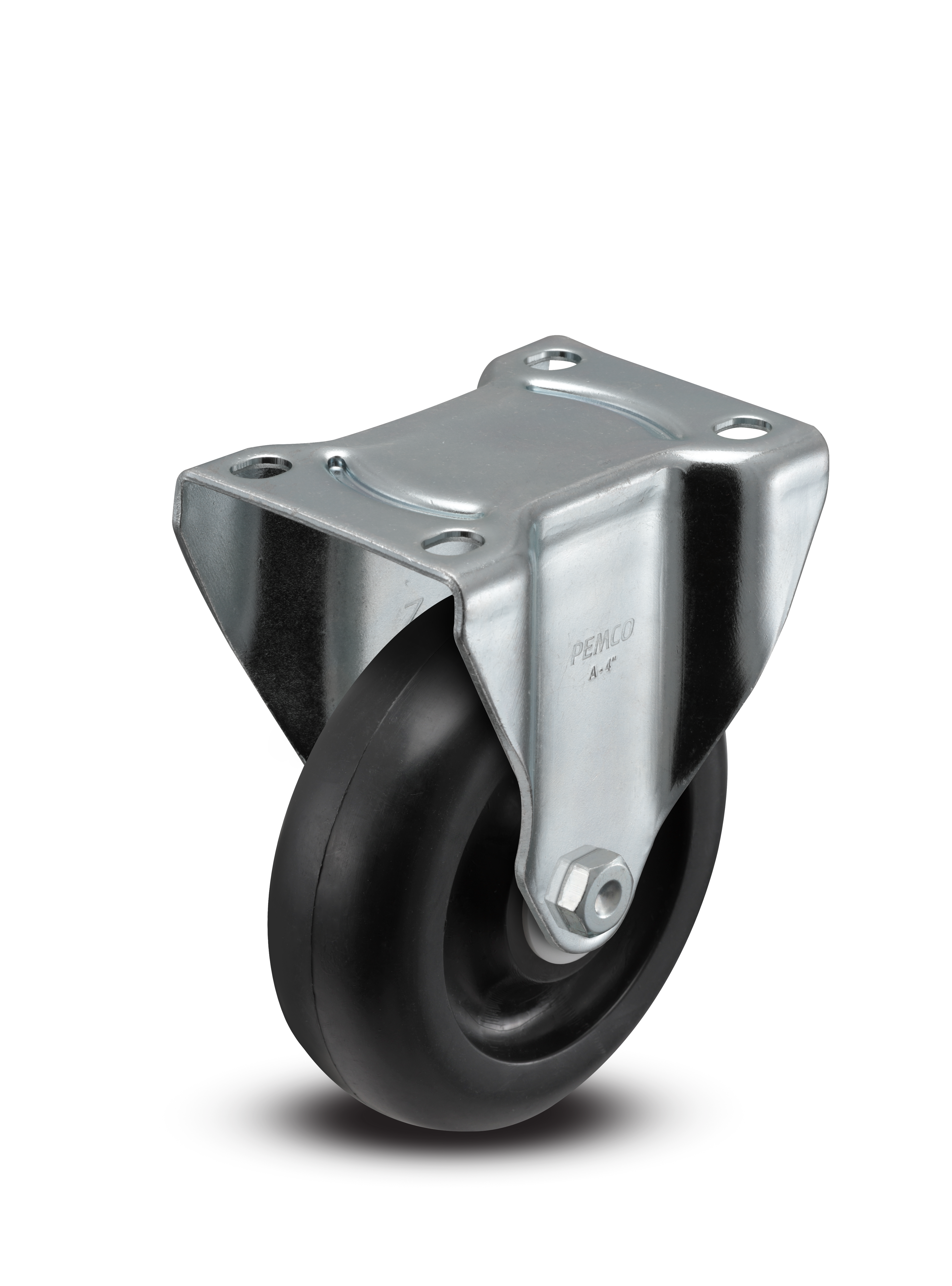

A-line 4" x 1.25" Polyolefin (POD) Wheel Caster With Rigid Top Plate - Part# AR40P1POD
300 lbper caster
Regular Price
$8.92
Polyolefin Wheel
4" x 1-1/4" Wide Wheel
300 lb Load Capacity
Delrin Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/4" |
| Fastening Type | Top Plate |
| Fastening Size | 2-5/8" x 3-3/4" |
| Bolt Hole Spacing | 1-3/4" x 2-3/4" |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Delrin |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Detail | Polyolefin (POD) |
| Wheel Color | Black |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Pemco A-Line 1 1/4 Inch Wide Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - AR40P1POD
Mount this 4-inch Pemco A-Line rigid at the back of a light cart that needs to clear bigger obstacles than the smaller A-Line wheels while staying economical.
The full 4-inch diameter rolls over wider cracks, cords, and thresholds and lifts the deck onto a 5-1/4-inch mount, which suits taller carts than the 3-inch and 3.5-inch models. The hard polyolefin wheel keeps the price low, resisting chemicals and moisture and wiping clean, and the Delrin bearing runs grease-free and quiet for light duty, though the hard tread can mark a soft floor. As a rigid it tracks straight while swivels up front steer, and the small 2-5/8-inch by 3-3/4-inch plate fits compact frames. It serves from -45°F to 180°F.
Ideal applications
- Light carts that must clear wider cracks and thresholds
- Budget rigs in spill-prone areas that wipe clean
- Taller compact frames needing a small mounting plate
Confirm the Delrin-bearing load class and the 5-1/4-inch mount height against the matched swivels before ordering.
Pairs with: the non-marking upgrade AR40P1TPU when floors must stay unmarked.
Wrong fit? Need a broader mounting plate? See the large-plate AR40P2POD in the Pemco collection.
Also in this family: the shorter 3.5-inch AR35P1POD, or the full Pemco collection.
