12"x 3" Polyurethane on Cast Iron Swivel Caster w/ Face Brake (FBB) - 410PY12501SFBB

About This Caster - 410PY12501SFBB

Set this 12-inch green polyurethane-on-iron swivel with a face brake on the very heaviest manual cart corner that has to maneuver, then park and hold dead still.

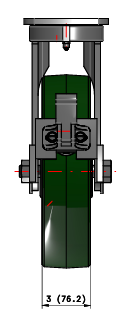

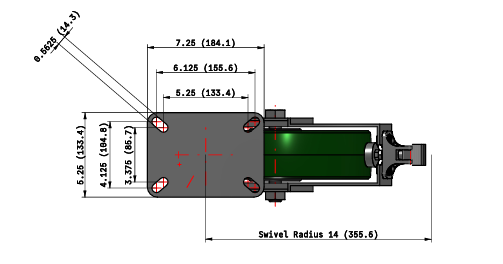

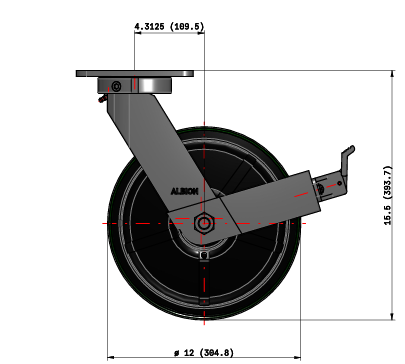

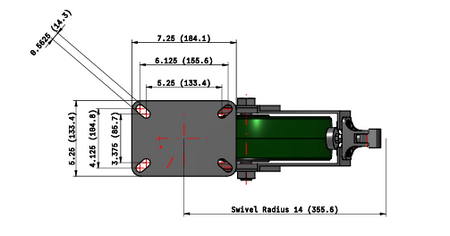

A face brake presses a shoe against the wheel to stop it, holding the heaviest hand-pushed cart on its spot. The 410 carries up to 5,400 pounds across the series, the green polyurethane on a cast iron core pairs that capacity with a non-marking, floor-friendly tread, the roller bearing is built for the heaviest manual loads, and as the largest braked caster in the 410 line it clears the biggest obstacles while the kingpinless welded raceway takes the extreme shock without a central kingpin to fail. It has a wide 3-inch tread, bolts on a 5-1/4 by 7-1/4-inch top plate, and holds from -40 to 180°F.

Ideal applications

• 12-inch braked green PU-roller swivel parking the very heaviest manual cart
• Face brake holding the 12-inch green non-marking roller-bearing wheel
• Largest kingpinless floor-friendly swivel that locks dead still

For a corner that only needs to steer, the plain 410PY12501S drops the brake.

Pairs with: plain 410PY12501S swivels on the rolling corners and this braked caster on a parking corner.

Wrong fit? Only need a roll or a smaller wheel? See the plain 410PY12501S and the 10-inch green PY braked 410PY10501SFBB.

Also in this family: the 8-inch green PY braked 410PY08501SFBB, or the full Albion collection.
