Best place to buy Colson Casters! Ordered heavy duty casters from CasterCentral.com and I had some questions and they helped me troubleshoot my installation. Thanks!!
Regular Price
$34.65
Metal Wheel
6" x 2" Wide Wheel
1200 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |
| Mount Height | 7-1/4" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1200 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details

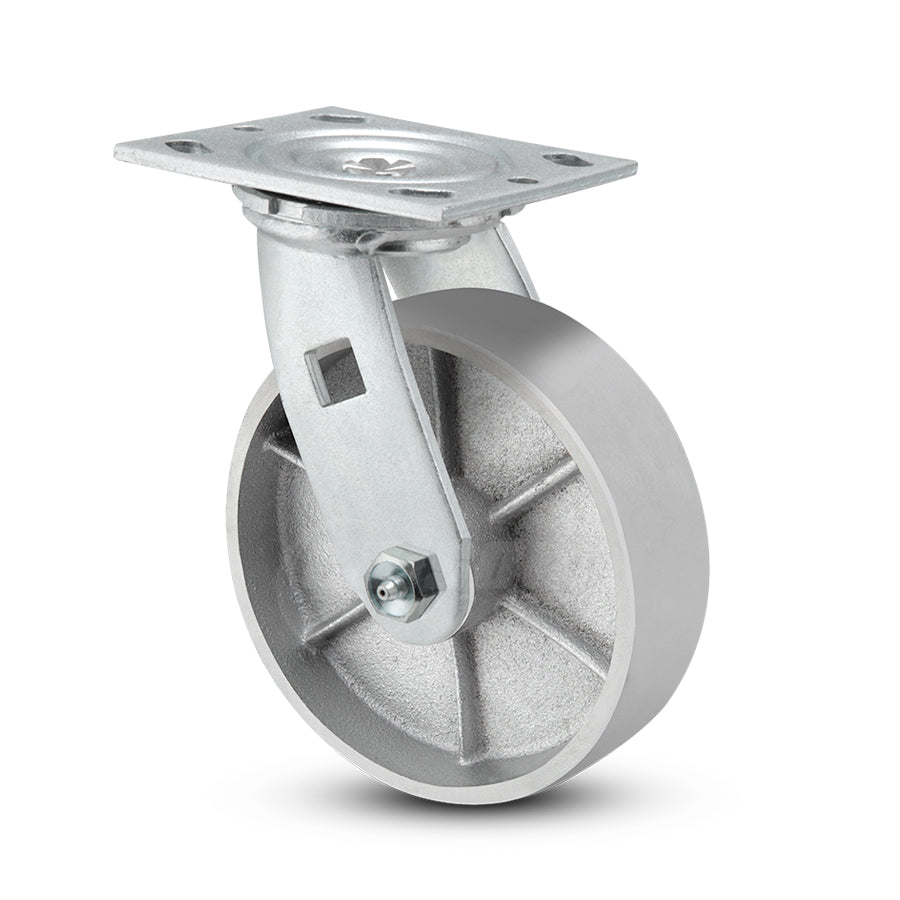

About This Caster - 16CA06201S
Choose this 6-inch 16 Series swivel for the front of a foundry cart on a rough hot floor, the cast iron caster whose wheel steers through heat to 800°F while the tall diameter bridges scale and slag.
Rubber gives by 180°F and phenolic chars past 250°F; the 16 Series cast iron wheel carries the highest load and steers through radiant heat to 800°F, and the 6-inch diameter bridges scale, slag, and seams that stop a smaller wheel on a pour floor. The roller bearing carries the load at a walk, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Front of foundry carts on rough hot floor
- Slag and scale that stalls a smaller front
- Steering a heavy load through a pour floor
Skip the cast iron wheel if the floor is finished or noise matters; it marks the floor and runs loud, so a polyurethane 16EG06201S rolls non-marking and quiet under load.
Pairs with: the 16CA06201R rigid on the back corners.
Wrong fit? Want a brake, or a non-marking tread? See the 16CA06201SFBA face brake and the polyurethane 16EG06201S.
Also in this family: the 8-inch 16CA08201S, or the full Albion caster collection.
