Regular Price
$39.27
Nylon Wheel
2-1/4" (58mm) x 1-3/4" Wide Wheel
450 lb Load Capacity
Double Sealed Precision Ball Bearing
Top Plate Mount
200°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/4" (58mm) |
|---|---|
| Tread Width | 1-3/4" |
| Mount Height | 3-3/4" (96mm) |
| Fastening Type | Top Plate |

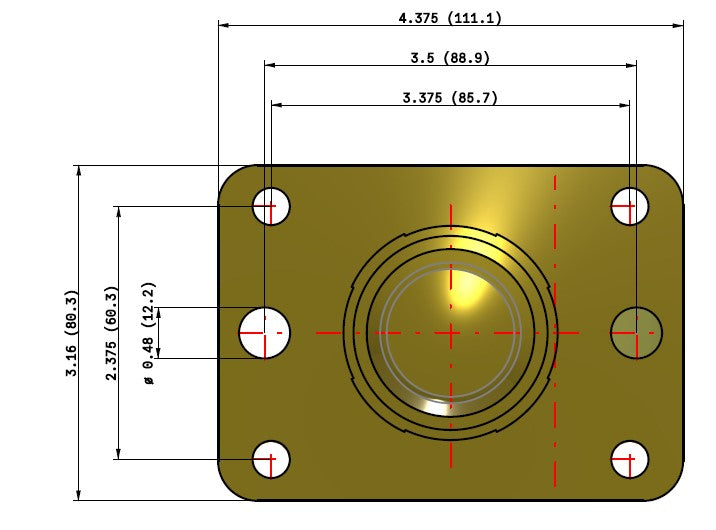

| Fastening Size | 4-3/8" x 3.16" |
Load & Performance
| Load Capacity | 450 lbs |
|---|---|
| Bearing Type | Double Sealed Precision Ball |
| Max Temperature | 200°F |
| Min Temperature | -40°F |
Materials & Finish
| Wheel Material | Nylon |
|---|---|
| Wheel Color | White |
| Finish | Yellow Dichromate |
| Caster Type | Swivel |
| Brand / Series | Albion 03 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Product Details

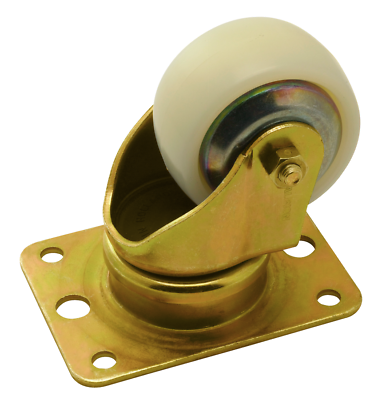

About This Caster - 03XN02028S004C
Choose this Albion 03 Series air-cargo swivel, the S004C configuration, for cold and weather-exposed freight handling where a standard caster's wheel turns brittle in the cold and its bare steel rusts under de-ice spray.
Temperature and corrosion are what break a caster on a ramp or in an unheated hold. A hard wheel cracks when it is loaded cold, and an unprotected swivel rusts stiff after a season of weather and runway chemicals. This Albion answers both: the white nylon wheel stays tough and rolls clean to -40°F without going brittle, and the yellow dichromate finish shields the steel from the salt and de-ice fluid that pit a plated caster. Double-sealed precision bearings in the swivel and the wheel keep grit out so the unit still rolls smooth after the exposure.
Ideal applications
- Unheated cargo hold roller deck operating near -40°F
- Outdoor ramp freight handling under de-ice and weather
- Refrigerated-freight conveyor needing a cold-tough nylon wheel
Skip this 03 Series caster for warm indoor shop carts or temperatures above 200°F; a general-purpose swivel from the Albion collection suits ordinary duty at lower cost.
Pairs with: the sibling config 03XN02028S001C on a deck set up for the alternate 03-series option.
Wrong fit? Indoor duty, or more heat? See the Albion collection and the nylon casters collection.
Also in this family: the 03XN02028S001C, or the full Air Cargo Casters collection.
3D CAD Model
