Almost every caster failure traces back to a short list of root causes, and the wear pattern on the part in your hand usually names the one that got you. The failed caster carries the evidence. Read it before you reorder.
Every Caster Failure Traces Back to a Short List of Causes
Failures group into five families: tread and wheel, bearing and swivel, rig and frame, mounting interface, and environment. Each family leaves a different signature, and each one points at a different field on the replacement spec.
That distinction is the whole point. Replacing like for like reinstalls the same caster failure on the same schedule. Diagnosing first changes the spec, and the spec change is what stops the cycle.
The economics back this up. A heavy-duty caster costs roughly $50 to $300 depending on capacity and type. The labor to replace it costs roughly $20 to $60 in maintenance time. The floor damage from a failed caster costs $500 to $5,000 to repair. Diagnosing correctly once is cheaper than replacing incorrectly three times.
Reading Caster Wheel Wear: Flat Spots, Chunking, and Tread Separation
Wheel wear is the most readable caster failure family on the list. Four patterns cover most of what comes off the floor.
Flat spots show up as a thumping vibration when you roll the equipment slowly. They form most often on polyurethane and rubber wheels that sat parked under heavy load for long stretches. The fix is a harder compound, a larger diameter, or a parking habit change.

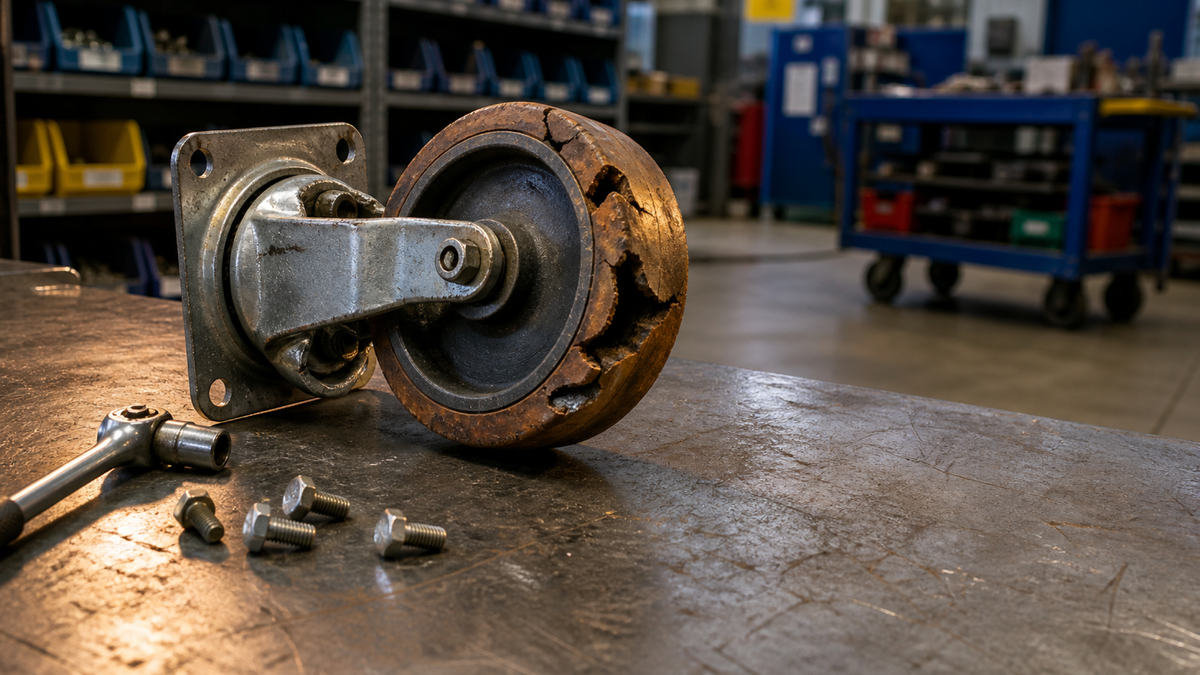

Chunking and tread cracking point at overload, shock loading, or a compound that is wrong for the debris and temperature on that floor. Look at what the wheel is rolling through before you look at capacity.
Tread separating from the wheel core points at heat buildup, which comes from sustained speed or travel distance beyond what the wheel was specified for. The corrective move is a wheel rated for the actual route.
Uneven wear across the tread width is not a wheel problem at all. It means the rig is bent or the mounting is misaligned, and the wheel is being dragged at an angle.
Grey non-marking treads are specified to protect floors, not to outlast everything else, so judge them on the floor they saved rather than on wear rate alone.
Wear Patterns That Are Actually a Load Problem
One caster in a set wearing far faster than the other three is a load distribution problem, not a wheel quality problem.
Fix it at the spec. On a four-caster cart, size to total weight divided by three rather than four. The Institute of Caster and Wheel Manufacturers recommends that three-caster calculation because load shifts during turning and one caster can momentarily carry nothing.
Then add margin: 20 percent over the calculated per-caster load as a minimum, and 40 to 50 percent where loads are dropped onto the equipment rather than set down.
Bearing and Swivel Failure: When the Caster Stops Turning
The symptoms arrive before the part does. Push effort climbs, the swivel fights direction changes, the raceway feels gritty, and the wheel scrubs across the floor instead of rolling.
The causes are usually simple. Contamination gets into the raceway. Washdown or chemical exposure strips lubrication out. Or the lubrication interval existed on paper and never happened on the floor.
A seized swivel is a compounding caster failure, which is why it deserves attention early. The operator pushes harder, the tread scrubs and flat-spots, and the mounting hardware absorbs side load it was never specified to carry.
The corrective spec change is sealed or shielded bearings and a raceway suited to the contamination on that floor. The preventive move is cheaper still. A 5 to 10 minute per-caster check on a four-caster cart, run quarterly, catches most of this long before it becomes a replacement.
Not sure which failure you are looking at? Request a quote and walk a specialist through what came off the equipment.
Rig, Fork, and Kingpin Failure Under Load
Rig damage is visible from across the shop. Forks splay outward, the wheel leans, the kingpin works loose, and cracks open at the welds.
This caster failure family is almost always a capacity or shock-loading story rather than a wear story. It is also the failure most likely to drop a load, which puts it in a different risk category than a worn tread.
There is a practical dividing line worth knowing. Heavy-duty selection starts at roughly 1,500 lbs per caster of dynamic capacity. Below that, standard industrial rig designs perform adequately. Above it, those designs reach their structural limits and a purpose-built heavy-duty rig is the right answer.
Corrosion is the environmental variant of the same story. In washdown, coastal, or chemical environments, the rig and raceway degrade from the outside in, and the spec change is a corrosion-resistant finish or Stainless Steel construction.
Any cracked or deformed rig comes out of service now. That is not a monitor-and-watch item.
Mounting Failure: Loose Plates, Bent Stems, and Stripped Threads
Mounting failures look deceptive. The caster itself still looks serviceable, but the equipment wobbles and the fasteners keep backing out.
Two causes dominate. The first is side loading a threaded stem that was never intended to carry it, which happens the moment a cart gets towed or dragged sideways. The second is mounting hardware that was never re-torqued after break-in.
A top plate that loosens repeatedly usually means the mounting surface is flexing, or the bolt pattern does not actually match the plate, so the load is riding on two fasteners instead of four.
Here is the decision rule. Repeated mounting failures on a stem caster in a load-bearing or towed application are the signal to move that equipment to a top plate mount, not to buy another stem.
Whatever the diagnosis, carry it into the reorder. The replacement spec should differ from the failed part in exactly the field that caused the failure.
Frequently Asked Questions
Q: What causes flat spots on caster wheels?
A: Flat spots form when a wheel sits parked under heavy load for extended periods, most often on polyurethane and rubber compounds. You will feel them as a thumping vibration when rolling slowly. Compound choice, diameter, and how long equipment sits loaded all factor in.
Q: Why did my swivel caster stop swiveling?
A: The raceway is contaminated, corroded, or dry. Debris packs into the bearing path, washdown chemicals strip the lubrication, or a scheduled lubrication never happened. Sealed or shielded bearings are the usual spec fix in dirty environments.
Q: How do I know if a caster failed from overload?
A: Look at the rig and the tread together. Overload caster failure shows in the structure, not just the wear. Splayed forks, a leaning wheel, cracked welds, or chunked tread all point at capacity or shock loading rather than normal wear. Recalculate per-caster load with the three-caster rule and margin before reordering.
Q: Should I replace one failed caster or the whole set?
A: Usually the set. Mixed wear and mixed overall heights throw load distribution off and put the work surface out of level, which tends to fail the next caster faster. Replacing the set also resets the inspection clock across the equipment.
Q: How often should casters be inspected?
A: Quarterly is a reasonable baseline for most industrial equipment. A thorough check runs 5 to 10 minutes per caster on a four-caster cart, covering tread condition, bearing feel, swivel action, and mounting hardware torque.
Turn a Caster Failure Into a Better Spec
A caster failure is only a loss if the replacement repeats it. Diagnose the wear pattern, change the field that caused it, and the next set outlasts the last one. Casters are all we do, and we have been doing it since 1866. Request a quote with a photo of the failed part and your load math.
