MFG PART: 62CA05201S

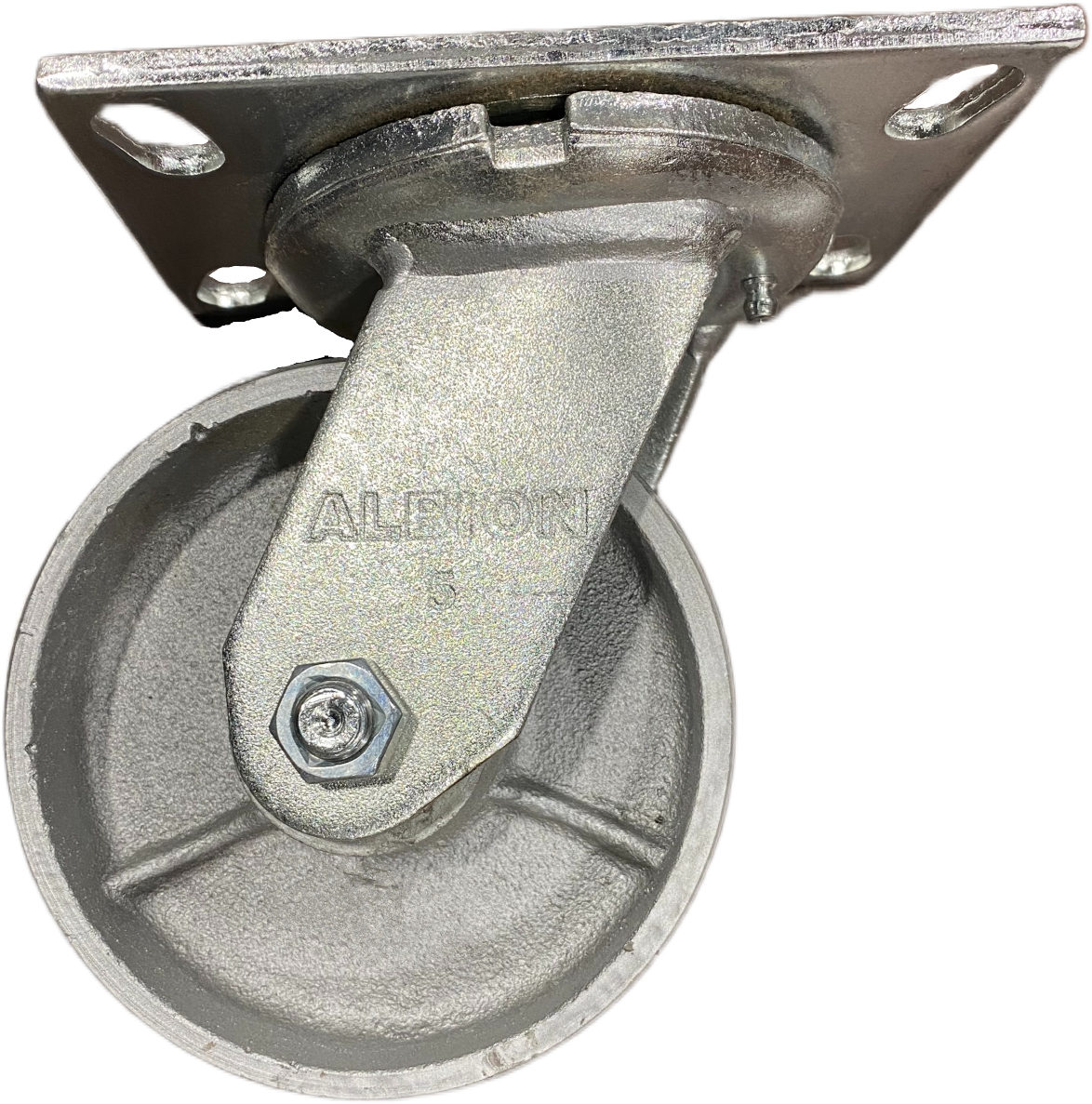

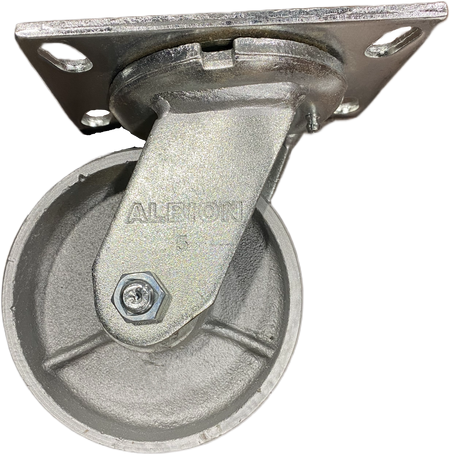

5"x 2" Swivel Caster with Cast Iron Wheel, Albion 62 Series - 62CA05201S
1300 lbper caster
Regular Price
$76.35
Metal Wheel
5" x 2" Wide Wheel
1300 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|
| Tread Width | 2" |
| Mount Height | 6-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 6-1/4" x 4-1/2" |
| Bolt Hole Spacing | 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" |
| Mounting Bolt Size | 1/2" |
| Swivel Radius | 4 |
Load & Performance
| Load Capacity | 1300 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 62 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 62CA05201S
Choose this 5-inch cast iron swivel for a heavy cart that has to clear thresholds and rough floor on a hot or chip-strewn shop floor, the duty where the 4-inch wheel hangs up on transitions but a polymer tread still cannot take the heat.
The 5-inch diameter rolls over floor breaks and debris a 4-inch wheel stalls against, and the grey cast iron wheel sheds chips and holds to 800°F where rubber and polyurethane soften. The roller bearing carries the heavy load under the swivel. It is the mid-size heavy-heat caster of the 62 Series.
Ideal applications
- Heavy shop carts crossing thresholds on hot floor, to 800°F
- Foundry and machine-shop rigs with debris underfoot, hard floor
- Heat-line transport that needs obstacle clearance, multi-shift
Skip cast iron under dropped or impacted loads; grey iron chips under shock, so the ductile iron 62FR takes impact without cracking.
Pairs with: the matching 5-inch cast iron rigid on the back corners of a four-corner cart.
Wrong fit? Impact loads, or a finished floor? See the ductile iron 62FR06201R and phenolic wheels in the Albion 62 Series.
Also in this family: 4-inch cast iron 62CA04201S, 8-inch phenolic 62TM08407S, or the full Albion 62 Series.
